| Rahmen |
| Rahmenform |
Fully |
| Rahmen |

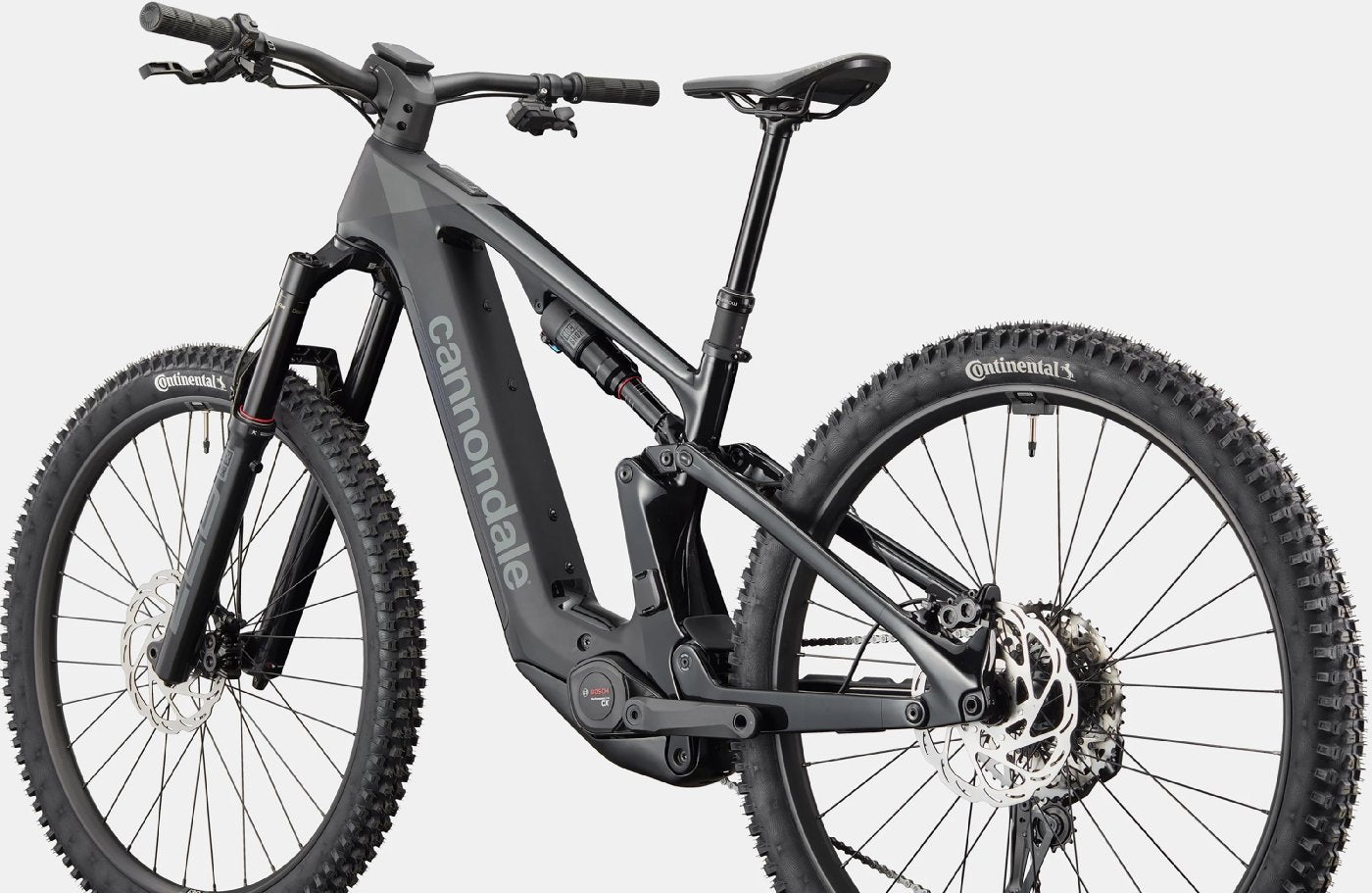

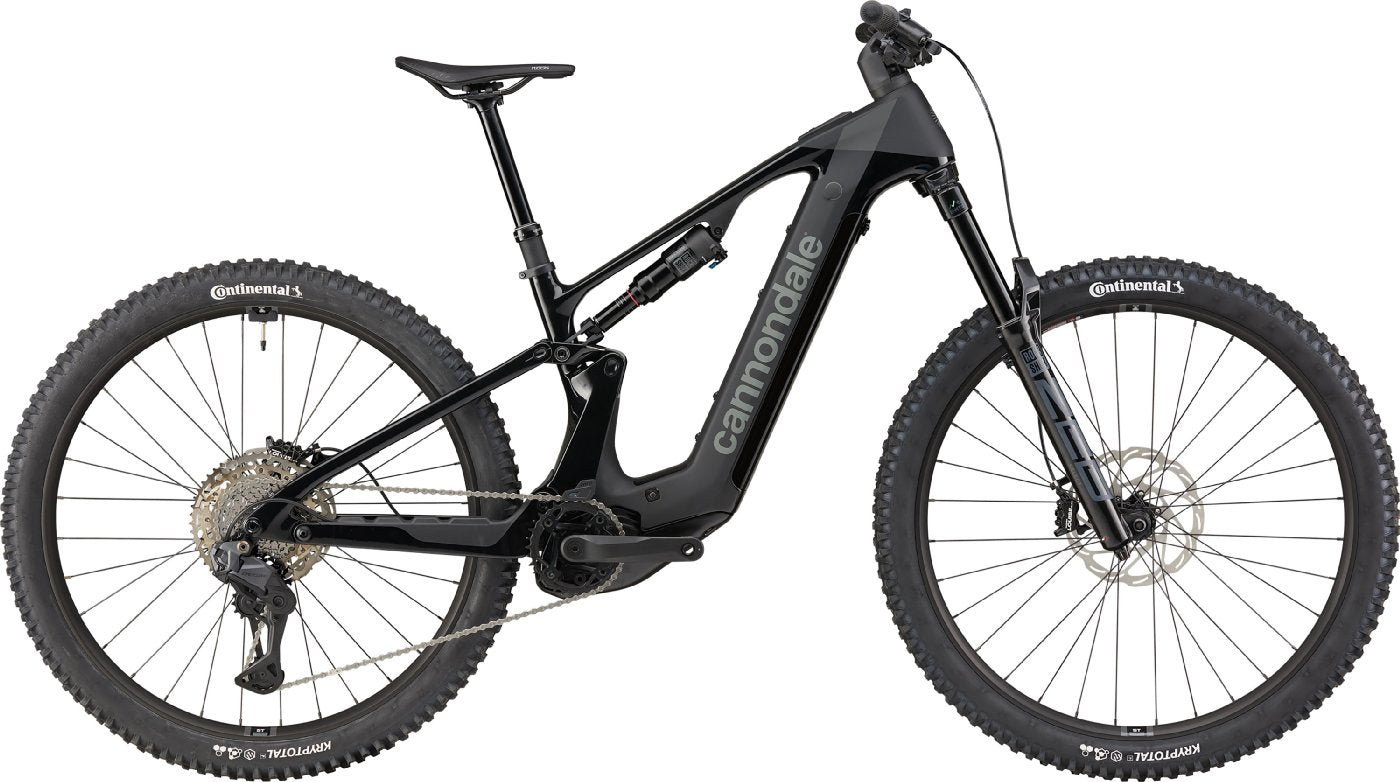

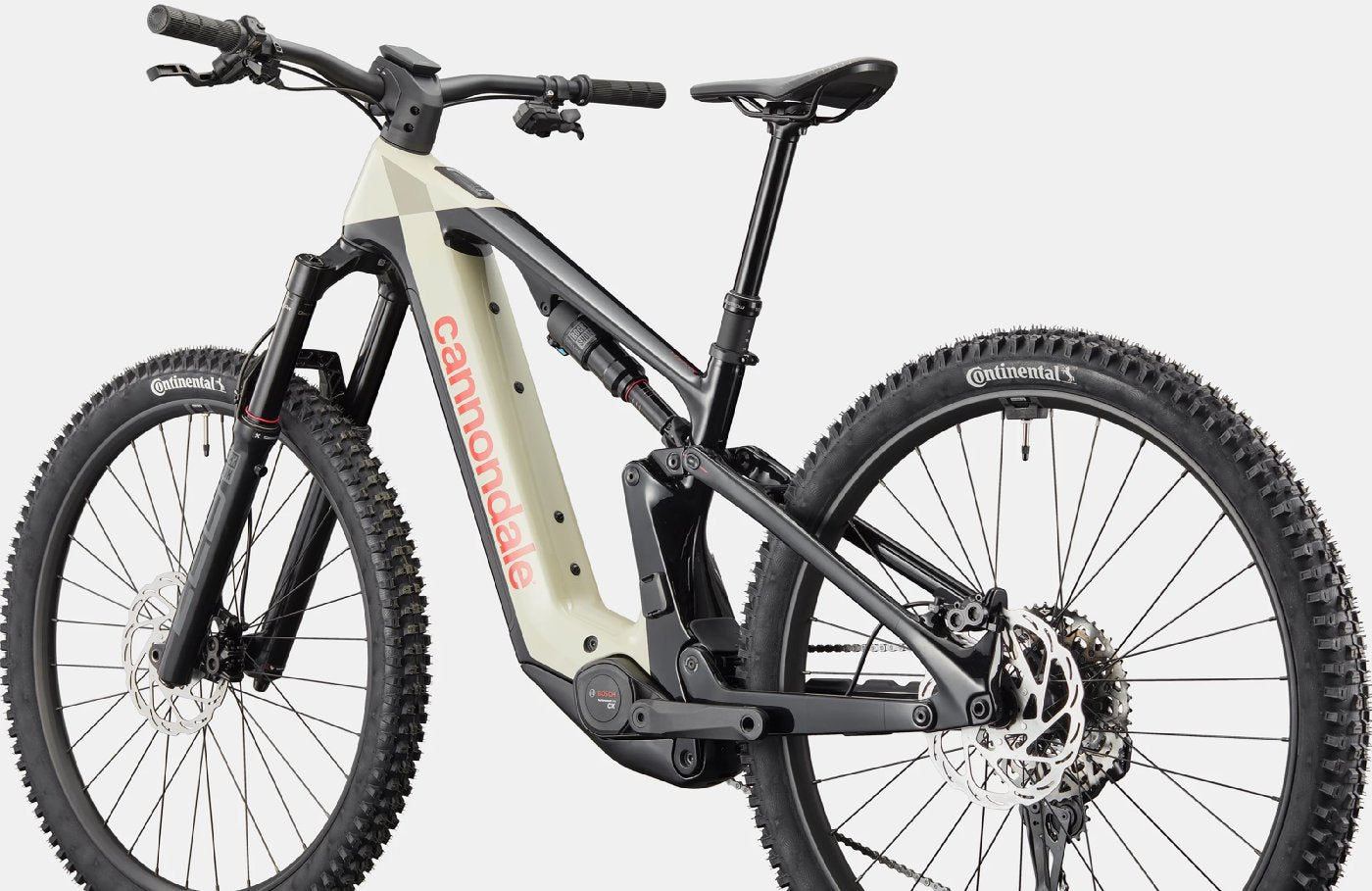

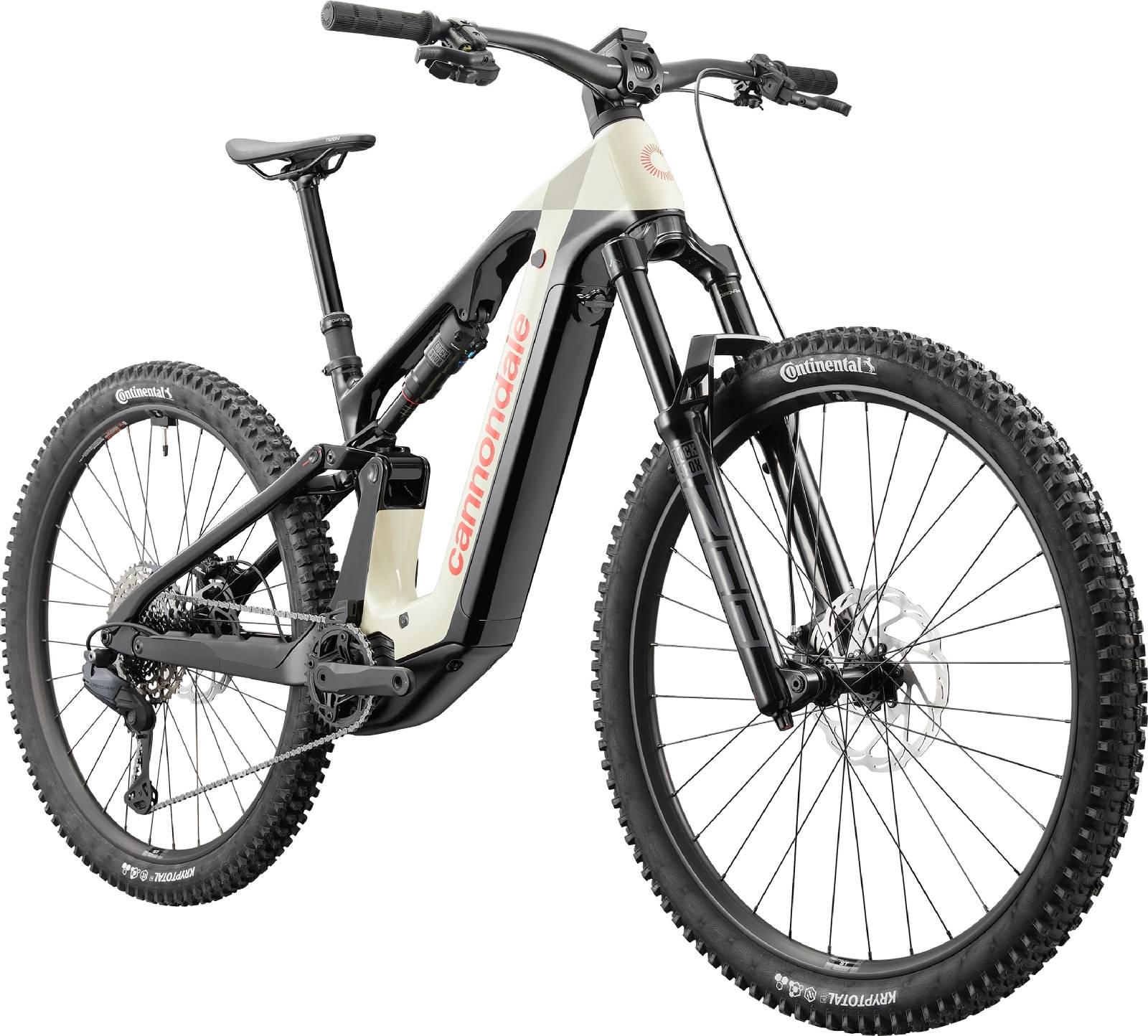

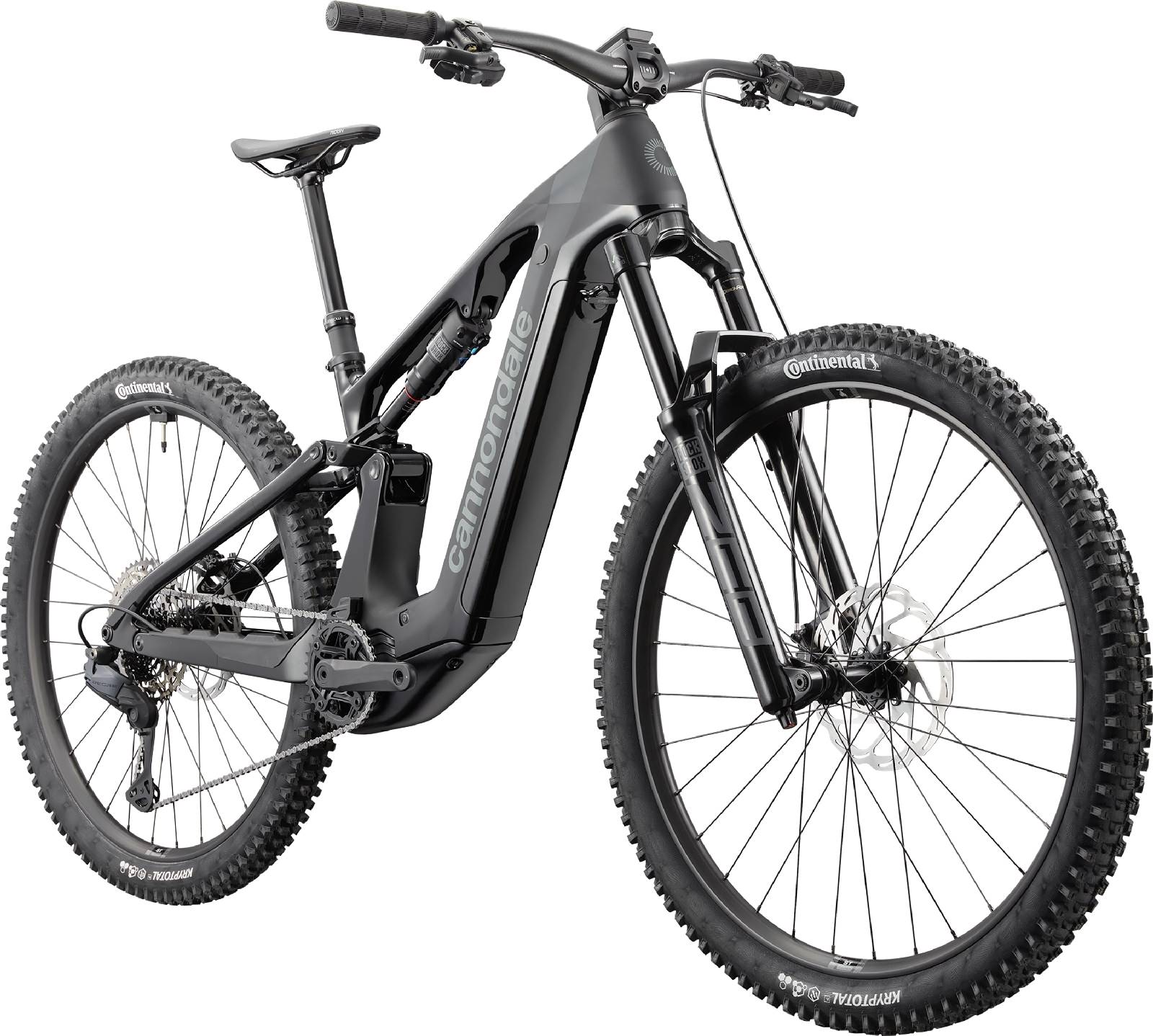

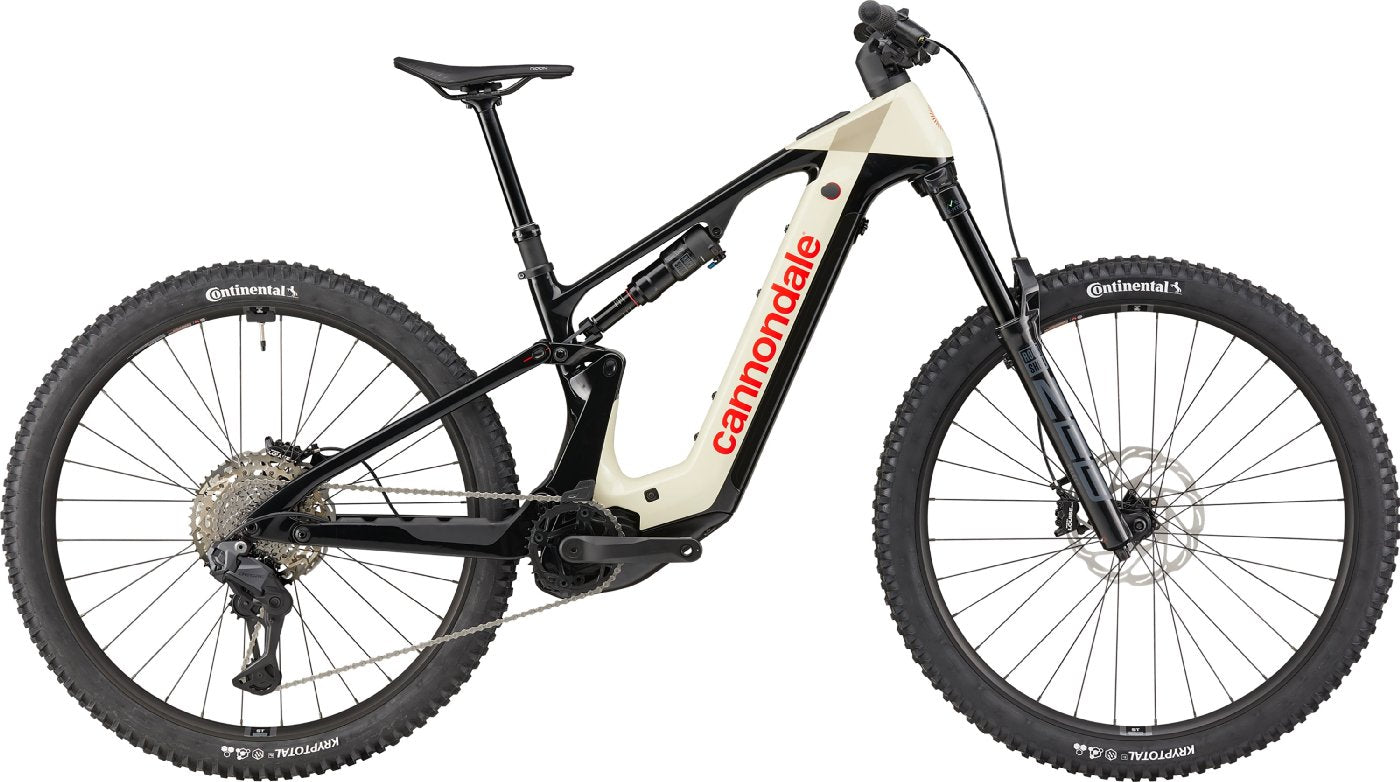

Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtu |
| Gabel |
RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset |
| Dämpfer |
RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm |
| Komponenten |
| Griffe |
Cannondale TaperRidge |
| Lenker |
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Vorbau |

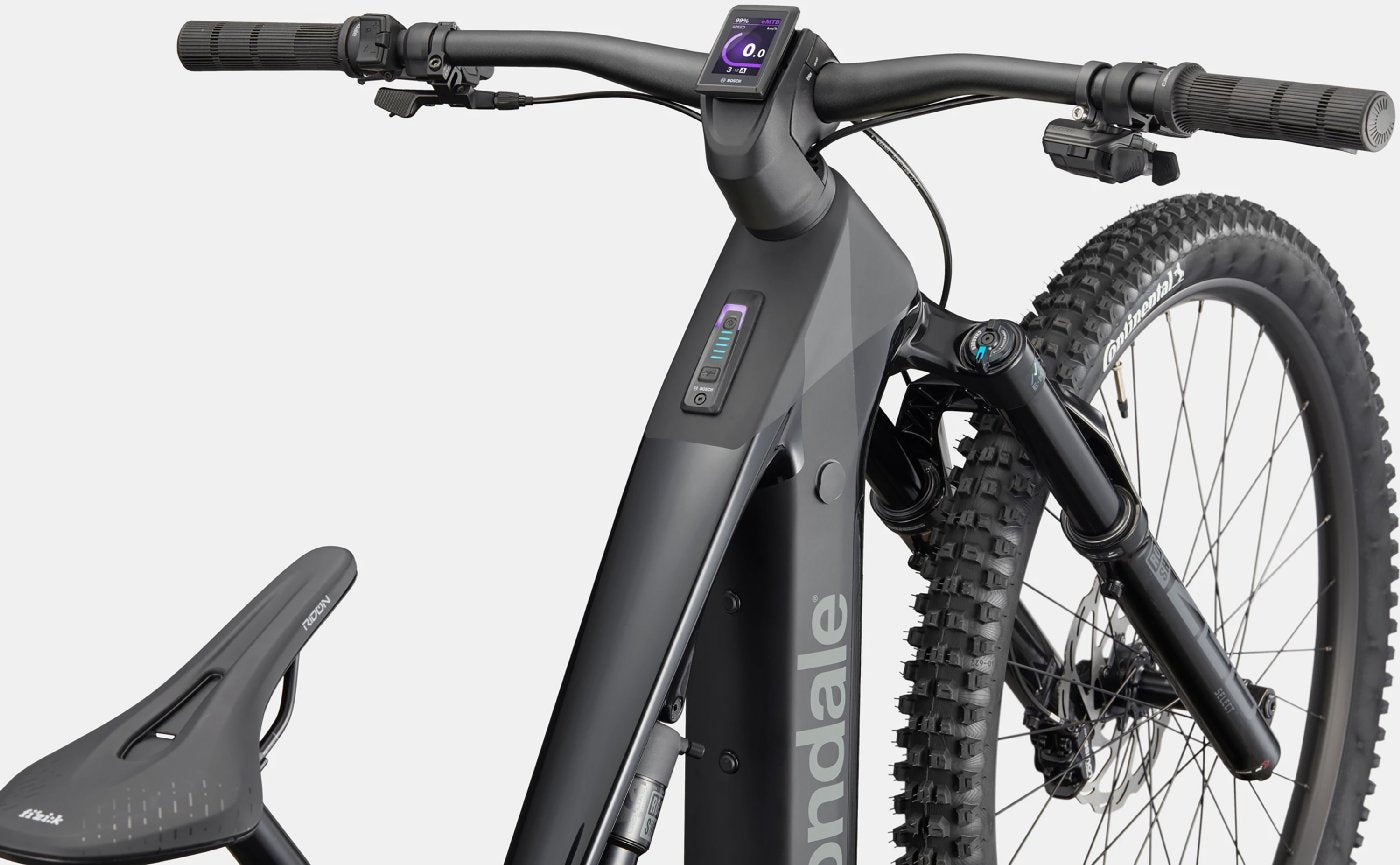

Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
| Steuersatz |
Acros ICR, 1.5" to 1.8", sealed bearings |
| Sattel |

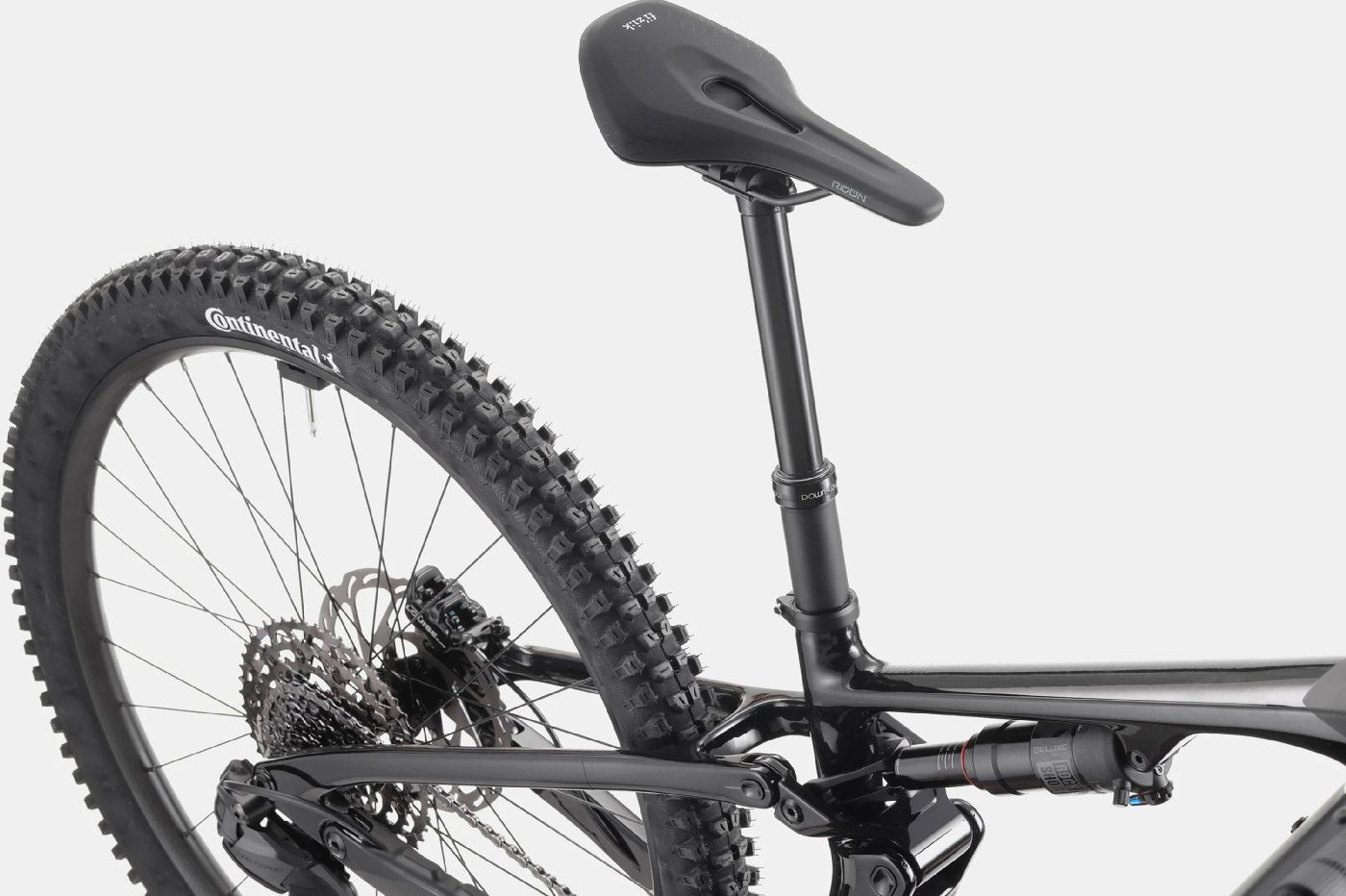

Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Sattelstütze |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Räder und Naben |
| Radgröße |
29" |
| Reifen vorne |
Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / hinten: Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Reifen hinten |
Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable / hinten: Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Felgen |
WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless ready |
| Speichen |
DT Swiss Champion 2.0 |
| Naben |
Vorne: Shimano TC500, 15x110mm thru-axle / hinten: Shimano TC500, 12x148mm thru-axle, centerlock |
| Gewichte |
| zulässiges Gesamtgewicht mit Fahrer und Zuladung |
138 kg |
